l 4K binocular splicing, up to 16 megapixels clear real-time image output.
l With a large horizontal 180° field of view, it’s able to cover the entire venue of the shooting effect.
l Integrated basketball and human figure detection algorithms, can automatically carry out the mirror to follow the shooting, push the near and far shooting, thus realizing the unmanned shooting, to bring the stunning sports live show.
l Have a built-in microphone that can better capture live sound for a more authentic stadium live experience.
l Support half-time live and full-time live two modes switching, can adapt to more game scenarios.
l Supports goal recognition and can automatically clip to generate match highlights.
l Supports rich software services that can initiate live/recorded broadcasts, score overlays, tournament commentary, and support relaying third-party live streaming platforms.
l With AI smart algorithms at its core, it allows every sporting event to deliver a high-quality broadcast experience at a fraction of the cost.
l Support Ethernet, WIFI, Bluetooth multiple network communication modes.
l Supports 64GB of local storage.

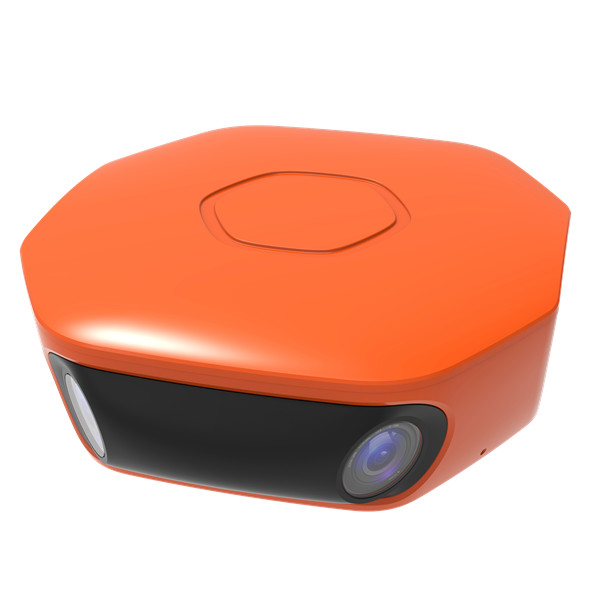

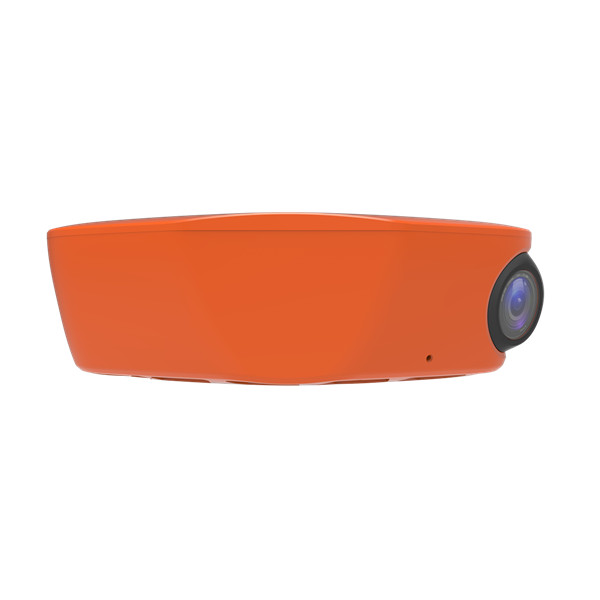

Product Model | AS101-C | |
Basic Parameters | Sensor Type | 1/1.8" 4KProgressive Scan CMOS |
Running Memory | 4GB DDR4 | |
Body Memory | 64GB EMMC | |
Minimum Illumination | 0.001Lux @(F1.2,AGC ON) ,0 Lux with IR | |
Lens Focal Length | 2.8mm fixed focus | |
Number of Lenses | 2 | |
Field of view | Horizontal field of view: 180°, Vertical field of view: 59° | |
Live Broadcast Function | Maximum Resolution | 16 million |
Panorama | Dual 4K splicing 180° panoramic high-definition picture | |
Live Picture | 1080P High-definition picture | |
Highlights | Automatic generation of goal highlights clips (half-time live mode support) | |
Live Mode | Left half-time live, right half-time live, full-court live | |
General Intelligence | Humanoid detection and tracking, basketball detection and tracking, goal judgment | |
Shooting Techniques | Dribbling mirror follow up shooting, push close and pull far shooting | |
Network Function | Network Communication | Ethernet, WIFI, Bluetooth |
Interface Characteristics | Network Interface | 1 RJ45 100/1000M adaptive Ethernet port |
Charging Interface | USB Type-C | |
Reset Button | Support long press reset function | |
On/Off Button | Power on/off button with running indicator light (ring type three-color light: green, white, red) | |
Power Indicator | 4 green indicator lights | |
Audio Interface | Built-in MIC | |
General Norm | Power supply | Rechargeable Li-ion battery power supply (10H), 11.1V 8000mAh,88.8Wh |
Power Consumption | ≤15W | |
Operating Environment | '-10～+50°C/less than ≤ 95% RH | |
Storage Environment | '0～+60°C/less than ≤ 95% RH | |
Protection Class | IP54 | |
Housing Material | PC + Hardware Material | |
Dimension(mm) | 179.5(L)*202.9(W)*66.5(H) | |
Weight | Approx. 1.4 kg (bare weight), approx. 2.2 kg (packed weight) |
