Core advantages
l Embedded Linux operating system, safe and stable operation;
l Quad-core [email protected] high-performance CPU, powerful configuration and extreme experience;
l Using ultra-low power processor and low power processing technology, the equipment runs with low power consumption and less heating;
l Independent NPU, supporting up to 2Tops computing power, and embedded with industrial leading deep learning face recognition algorithm;
l 0.08S ultra-fast face recognition, high-precision face recognition, super-large visitor flow rate face scanning without pressure;
l Intelligent ISP algorithm, super wide dynamic, fearless strong light, backlight and low light, adapt to various complex light scenes;
l The largest face recognition mode, support face selection, face enhancement and face exposure, and improve image quality;
l Support the recognition remote control of 0.3~1M, effectively preventing the misrecognition of persons who are far away;
l Binocular live detection function, effectively solving the problem of deceiving photos, videos and other methods;
l Standard configuration of 30,000 face database, 150,000 record storage, and support for batch import and export of data;
l Support mask detection, support face recognition when wearing a mask, and send reminder of not wearing a mask;
l Support visitor setting, access control time management, permission group setting, door opening delay setting, log query;
l Support access control status acquisition, door overtime and unclosed alarm, blacklist alarm, etc.;
l Seamlessly connect to various cloud platforms such as WeChat and Ruishiyun to realize all-round intelligent access control and attendance management;
l Support custom recognition voice broadcast, personalized screen saver settings, image advertising carousel functions;
l Industrial-grade design, IP67 protection level, IK08 anti-riot level, worry-free outdoor operation;
l Normal under high temperature and severe cold, adapt to temperature difference range of -30℃～70℃, suitable for indoor and outdoor all-weather scenes;
l Support audio output interface, which can be connected to an external power amplifier;
Basic skills
l Use 2 million pixels, high-definition F2.2 aperture security-grade industrial lens, which are anti-backlight;
l 7-inch IPS full screen, resolution 1024*600, screen brightness 450cd/m2;
l Support the screen to automatically sleep, automatically sense human body, quickly turn on the fill light, and wake up the face recognition working mode;
l The equipment is equipped with a 100M Ethernet port, which supports online and offline working modes;
l Metal body structure, outer glass good light transmission, high hardness and not easy to deform;
l Open cloud, LAN access protocol and SDK, rich multimedia and AI API;
l Optional mounting brackets, and optional wall mounting/gate installation methods

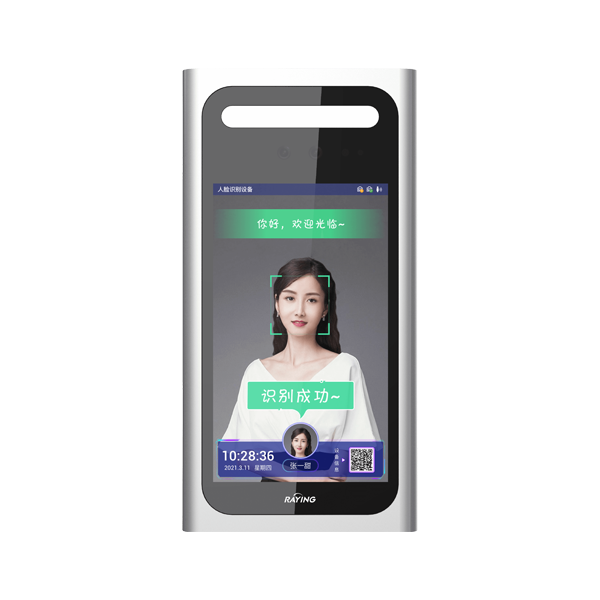

Basic data | Product name | 7-inch binocular face recognition |
Product model | STD-5MA072L1-M | |
Operating system | Embedded Linux system | |
Processor | Quad-core [email protected] high-performance CPU | |
Display screen | Size | 7-inch IPS full screen |
Brightness | 450cd/m2 | |
Resolution | 1024×600 | |
Camera | Resolution | 200W pixels (1920×1080) |
Sensor | 1/2.7 inch low illumination CMOS sensor | |
Camera | HD fixed focus 4mm & aperture F2.2 | |
White balance | Automatic, low color temperature, high color temperature, manual | |
Wide dynamic | Digital wide dynamic and true wide dynamic | |
Fill light | RGB (natural light) and infrared light | |
Smart functions | Detection angle | Vertical viewing angle: 90 degrees, horizontal viewing angle: 53 degrees |
Intelligent detection | Maximum face detection, Mask detection | |
Storage | 30,000 face base library, 150,000 record storage | |
Accurate recognition | 1: N recognition speed ≤0.2S/person, recognition accuracy ≥99.97% | |
Identifying method | Human face | |
Recognition distance | 0.3m-2.0m adjustable | |
Parameter settings | Visitor management, permission group, access control period, black and white list, identification parameters, image settings, information display, etc. | |
Alarm management | Blacklist alarms, door overtime unclosed alarms | |
Live detection | Support | |
Operating mode | Support online and offline work | |
Interface | Communication method | Wired |
Network interface | 1 10/100M network adaptive, RJ45 interface | |
Doorlock interface | Door opening signal, door sensor status, switch button | |
Wiegand interface | 3 (D0, D1, GND) support Wiegand 26, 34 | |
Serial interface | 1 RS232 serial port RX, TX | |
Reset interface | Support | |
Alarm interface | 1 alarm output | |
Audio interface | Built-in speaker, and1-circuit 3.5mm standard audio output interface | |
Platform agreement | Active registration, SDK, WebSocket, HTTP reverse | |
General parameters
| Power supply | DC12V±30% |
Power consumption | ≤15W | |
Working environment | Temperature: - 30 ℃ ~ 70 ℃ humidity: 10 ~ 90% RH | |
Protection level | IP67 protection level, IK08 anti-riot level, anti-static: contact ±6KV, air ±8KV | |
Installation method | Optional gate type / wall-mounted installation, support 86 box installation, optional sunshade | |
Equipment size | Length: 247mm, width: 126.9mm, thickness: 26.6mm (Not included bracket) | |
Weight | About 1.5kg |
Product size (unit mm)
1、 Column type installation:
2、Wall-mounted installation:
