Core advantages
l Embedded Linux operating system, safe and stable operation;
l Quad-core [email protected] high-performance CPU, extreme smooth operation experience;
l Using ultra-low power processor and low power processing technology, the equipment runs with low power consumption and less heating;
l Independent NPU, supporting up to 2Tops computing power, and embedded with industrial leading deep learning face recognition algorithm;
l 0.08S ultra-fast face recognition, high-precision face recognition;
l Intelligent ISP algorithm, super wide dynamic, fearless strong light, backlight and low light, adapt to various complex light scenes;
l The largest face recognition mode, support face selection, face enhancement and face exposure, and improve image quality;
l Support the recognition remote control of 0.3~2M, effectively preventing the misrecognition of persons who are far away;
l Binocular live detection function, effectively solving the problem of deceiving photos, videos and other methods;
l Suitable 30,000 face base library, 30,000 card library, 150,000 records, and support for batch import and export of data;
l Support swiping face, swipe card, (IC card, NFC card, ID card physical card),face & swipe card, etc.; and support the customization and expansion of verification methods;
l Support mask detection, face recognition when wearing a mask, and send reminder of not wearing a mask;
l Support visitor setting, access control time management, permission group setting, door opening delay setting, log query;
l Seamlessly connect to various cloud platforms such as WeChat and Ruishiyun to realize all-round intelligent access control and attendance management;
l Support access control status acquisition, door overtime and unclosed alarm, blacklist alarm, etc.;
l Support custom recognition voice broadcast, personalized screen saver settings, image advertising carousel functions;
l Industrial-grade design, IP67 protection level, normal under high temperature and severe cold, adapt to temperature difference range of -30℃～70℃, suitable for indoor and outdoor all-weather scenes;
Basic skills
l Use 2 million pixels, high-definition F2.2 aperture security-grade industrial lens, which are anti-backlight;
l 8-inch IPS full screen, resolution 800*1280, outdoor high-brightness screen above 450cd/m2;
l Support the screen to automatically sleep, automatically sense human body, quickly turn on the fill light;
l Support offline operation, no need to network, equipment equipped with 100M network port;
l Metal structure body, unique double glass structure, strong hardness and no deformation, good light transmission and no light leakage, presenting excellent video effects;
l Open cloud, LAN access protocol and SDK, rich multimedia and AI API;
l Optional wall mounting/gate installation methods;

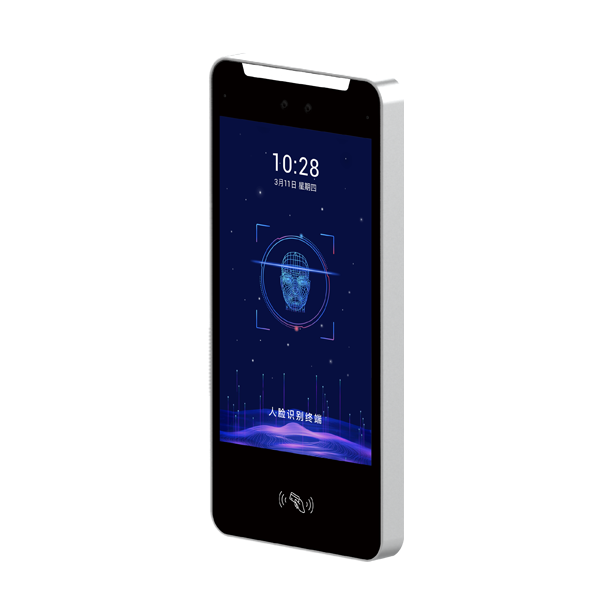

Basic data | Product name | 8-inch binocular face recognition |
Equipment model | STD-5MC082L1-MC | |
Operating system | Embedded Linux system | |
Processor | Quad-core [email protected] high-performance CPU | |
Display screen | Size | 8-inch IPS |
Brightness | 450cd/m2 | |
Resolution | 800×1280 | |
Camera | Resolution | 200W pixels (1920×1080) |
Sensor | Binocular 1/2.7 inch low illumination CMOS sensor | |
Camera | HD fixed focus 4mm & aperture F2.2 | |
White balance | Automatic, low color temperature, high color temperature, manual | |
Wide dynamic | Digital wide dynamic and true wide dynamic | |
Fill light | RGB (natural light) and infrared light | |
Smart functions | Detection angle | Vertical viewing angle: 90 degrees, horizontal viewing angle: 53 degrees |
Face detection | Maximum face detection, Mask detection | |
Storage | Suitable 30,000 face base library, 30,000 card library, 150,000 records | |
Accurate recognition | 1: N recognition speed ≤0.2S/person, recognition accuracy ≥99.97% | |
Recognition distance | 0.3m-2.0m adjustable | |
Live detection | Support | |
Identifying method | Support swiping face, swipe card, (IC card, ID card, physical card),face & swipe card | |
Parameter settings | Visitor management, permission group, access control period, black and white list, identification parameters, image settings, information display, etc. | |
Alarm management | Blacklist alarms, door overtime unclosed alarms | |
Operating mode | Support online and offline work | |
Interface | Communication method | Wired |
Network interface | 1 10/100M network adaptive, RJ45 interface | |
Access control interface | Door opening signal, door sensor status, switch button | |
Wiegand interface | 1 R Wiegand (D0, D1, GND) support Wiegand 26, 34 | |
Serial interface | 1 RS232 serial port RX, TX | |
Reset interface | Support | |
Alarm interface | 1 alarm output | |
Audio interface | 1-circuit 3.5mm standard audio output interface, Built-in speaker, voice broadcast | |
Platform agreement | Active registration, SDK, WebSocket, HTTP reverse | |
General parameters | Power supply | Voltage: DC12V ± 20%, rated power consumption ≤ 20W |
Working environment | Temperature: - 30 ℃ ~ 70 ℃ humidity: 10 ~ 90% RH | |
Protection level | IP67 protection level, anti-static: contact ±6KV, air ±8KV | |
Installation method | Support Wall-mounted type, table vertical type, optional mounting brackets,support 86 boxe | |
Size(mm) | 256(L)*124(W)*21（H）mm | |
Weight | ≈1.5Kg |
Product size (unit mm):
