? Remote accurate temperature measurement:
Equipped with multi-point infrared non-contact temperature measurement module, the temperature measurement distance is up to 0.5M, and the temperature measurement accuracy is 0.5℃.
The terminal can measure temperature in real time, automatically collect and record body temperature information.
? Abnormal temperature warning:
If body temperature data exceeds the threshold set by the user, the terminal will issue an abnormal warning to effectively screen people with abnormal body temperature.
? Recognition of wearing a mask:
Mask detection function is integrated to determine whether the passer-by is wearing a mask. At the same time, it can perform the face recognition and comparison of mask-wearing person,
so as to ensure the safety of person's identity.
? Face recognition:
Based on face recognition technology, it can realize non-contact access control and attendance, effectively avoiding the potential risks brought by traditional contact access control and attendance.
?Binocular living-body anti-counterfeiting detection
Equipped with binocular cameras, it can effectively resist cheating attacks such as photos and videos to ensure data accuracy.
? Ten-thousand-level face database:
It is equipped with a 10,000-level face database as standard. Through face recognition and comparison, it can quickly lock the identity of the target with abnormal body temperature,
and improve work efficiency of pre-warning, in-process processing, and post-tracing.
? Safe and stable:
It adopts high-performance, high-stability embedded Linux system and built-in high-performance AI processor.
? Rapid deployment:
Supporting turnstiles and wall mounting, optional WIFI/4G networking communication mode, rapid deployment to meet the needs of various installation environments and scenarios,
reducing the risk of cross-infection, and saving manpower and material resources.
? Use environment
Using an external temperature measurement module, the temperature measurement accuracy is not affected by the working temperature of the fuselage, as well as the fuselage IP54 protection level

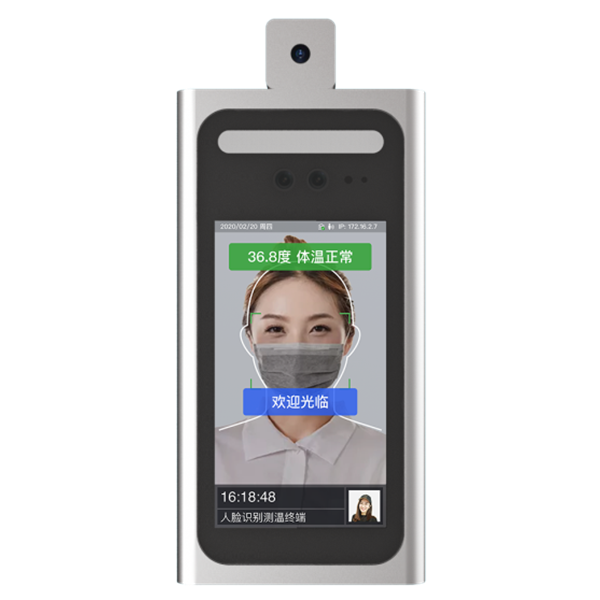

Basic information | Product name | 7-inch binocular temperature measurement face recognition terminal |
Product number | STD-5MA0721-E-F05 | |
Operating system | Embedded Linux system | |
Processor | Quad-core A55@1.5GHZ high-performance CPU | |
Display screen | Size | 7-inch IPS full screen |
Brightness | 450cd/m2 | |
Resolution | 1024×600 | |
Camera | Resolution | 200W pixels (1920×1080) |
Sensor | 1/2.7 inch low illumination CMOS sensor | |
Lens | HD fixed focus 4mm & aperture F2.2 | |
Colour balance | Automatic, low color temperature, high color temperature, manual | |
Wide dynamic | Digital wide dynamic and true wide dynamic | |
Fill-in light | RGB (natural light) and infrared light | |
Human body temperature measurement | Measuring range | 30℃~45℃ |
Measuring distance | 50cm | |
Measuring error | ≤±0.5℃ | |
Smart function | Detection angle | Vertical viewing angle: 90 degrees, horizontal viewing angle: 53 degrees |
Face Detection | Maximum face detection | |
Storage | 30,000 face database, 150,000 records storage | |
Face recognition | Recognition speed ≤0.2 seconds, recognition accuracy ≥99.97% | |
Recognition distance | 0.3m-2.0m adjustable | |
Live detection | Support | |
Parameter settings | Black and white list, identification parameters, image settings, information display, etc. | |
Alarm management | Blacklist alarm, door overtime open alarm | |
Mask detection | Support wearing-mask detection, automatic recognition voice reminder without mask | |
Screen saver function | Customized screensaver display, personalized advertisement | |
Interface | Communication method | Ethernet |
Network Interface | 1 10/100M network adaptive, RJ45 interface | |
Access control interface | Door opening signal, door sensor status, switch button | |
Wiegand interface | 3 (D0, D1, GND) support Wiegand 26, 34 | |
Serial interface | 1 RS232 serial port RX, TX | |
Reset interface | Support | |
Alarm interface | 1 alarm input | |
Audio interface | 1-circuit 3.5mm standard audio output interface, built-in speaker, voice broadcast | |
Platform protocol | Active registration, SDK, WebSocket, HTTP | |
General parameters | Power supply | DC12±20%/2A |
Working environment | Indoor wind-free environment, temperature maintained at 10℃~35℃ Humidity: 10～90%RH | |
Protection level | antistatic: contact ±6KV, air ±8KV | |
Installation level | Wall-mounted type, gate-mounted type; bracket optional | |
Size(mm) | Length: 247mm, Width: 126.9mm, Thickness: 26.6mm (without bracket) | |
Weight | About 1.5kg |
Product size (unit mm):
